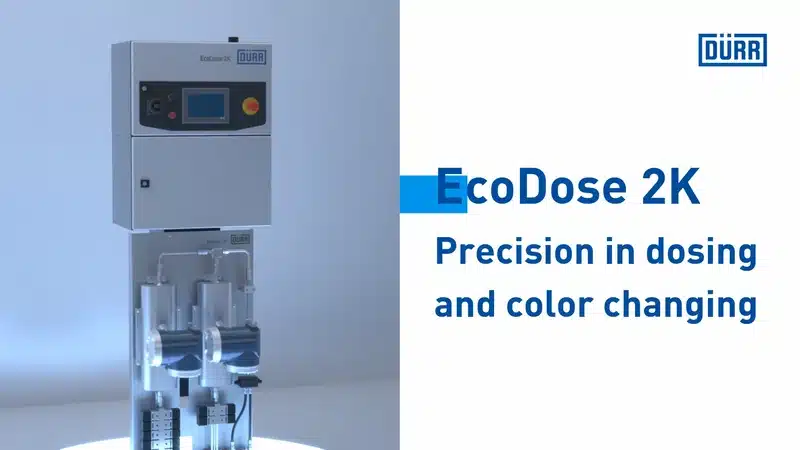

Dürr EcoDose 2K/3K: Precision Liquid Paint Dosing in India

Precision in liquid paint mixing is not optional when you are running 2K or 3K paint systems. Even small deviations in the mixing ratio between resin and hardener — or between base coat, catalyst, and effect coat — result in adhesion failures, incorrect gloss, or premature coating breakdown in service. Manual mixing introduces variability that is difficult to control consistently across shifts and operators. Engineered dosing systems remove this variability entirely.

The Dürr EcoDose 2K and 3K dosing systems deliver precision ratio control at industrial throughput rates. OptiFinish (Value Added Coating Solutions Pvt. Ltd.) supplies and commissions these systems for Indian manufacturers as an authorised Dürr partner.

Why Liquid Coating Still Matters Alongside Powder

Powder coating is now the dominant industrial finishing process in India for most metal substrates — and rightly so. It offers lower VOC emissions, higher material efficiency, and simpler operator handling compared to solvent-borne liquid paints. But liquid coating remains the correct choice for certain applications:

• Substrates that cannot withstand oven temperatures above 120–140°C — plastics, pre-assembled components, temperature-sensitive subassemblies
• Complex architectural or decorative finishes where liquid systems offer a broader range of special effects, textures, and clarity not achievable with current powder formulations
• Repair and touch-up work on installed products where a curing oven is not available
• Automotive OEM topcoat systems where multi-layer wet-on-wet application sequences are specified by the OEM

For manufacturers who need liquid coating capabilities — whether as their primary process or as a complement to a powder coating line — precision dosing is the critical quality control point.

What Is the Dürr EcoDose System?

The EcoDose is a gear pump-based volumetric dosing system for multi-component liquid paint systems. It measures and delivers each paint component — base, hardener, effect additives — in precisely controlled ratios, regardless of viscosity variations or supply pressure fluctuations. The gear pump approach provides positive displacement metering, which means the delivery volume is mechanically determined rather than depending on paint pressure or operator technique.

EcoDose 2K — Two-Component Dosing

The EcoDose 2K is designed for standard two-component paint systems. It handles the most common industrial 2K formulations including polyurethane, epoxy, and acrylic topcoats. The system maintains tight ratio accuracy and is compatible with solvent-borne, water-borne, and high-solids paint formulations.

Typical 2K applications in India:

• Polyurethane topcoats on agricultural and construction equipment
• Epoxy primers on automotive chassis and underbody components
• Acrylic topcoats on premium consumer products
• 2K protective coatings on industrial machinery and electrical enclosures

EcoDose 3K — Three-Component Dosing

The EcoDose 3K adds a third component channel for applications requiring a separate effect component, accelerator, or specialty additive. Typical applications include effect coats such as metallic and pearl finishes, and tri-component industrial topcoats where the additional channel is used for a crosslinker or performance additive. The precision standard is the same as the 2K system, with the added complexity of a three-way ratio being managed simultaneously.

Typical 3K applications in India:

• Automotive effect topcoats with metallic or pearl additives
• High-performance industrial coatings requiring a separate accelerator component
• Premium consumer product coatings with visual effect requirements

Why Precision Dosing Matters in Indian Manufacturing

Indian manufacturers supplying to automotive OEMs, export markets, or premium consumer segments face increasing quality requirements for liquid coating systems. The consequences of poor mixing ratio control go beyond cosmetic finish issues.

Adhesion failure results from incorrect hardener ratios that prevent full crosslinking of the paint film — a problem that may not be visible immediately but causes coating delamination in service. This is the most costly failure mode because it appears after the product has been delivered, assembled, or installed, triggering warranty claims and field replacements rather than in-line rejects.

Gloss deviation occurs when off-ratio material cures to a different surface energy than specified, producing a gloss reading outside the customer's specification window. For OEM-supplied components, gloss is typically specified tightly — ±2 GU at 60° is a common automotive requirement — and deviation triggers rejection at incoming inspection.

Pot life waste is a less-discussed but real cost of manual mixing. When mixed 2K material is not used within its pot life, the entire batch must be discarded. Dosing systems that mix at point-of-use rather than in bulk eliminate pot life waste entirely — the system mixes exactly as much material as the gun needs, precisely when it needs it.

Operator variability is the fundamental problem that precision dosing eliminates. Even trained operators measuring volumes manually introduce batch-to-batch ratio variation. Across shifts, fatigue, interruptions, and attention variation all affect mixing accuracy in ways that are difficult to monitor and essentially impossible to eliminate through procedure alone. An engineered dosing system produces the same ratio reliably on the first part of Monday morning and the last part of Saturday night.

The EcoDose in Context: Pot Life, Flush Volume, and System Economics

Pot Life Management

A key advantage of precision dosing at point-of-use is pot life management. In conventional manual mixing, the mixed material's clock starts when the hardener is added to the batch. Any mixed material not applied within the pot life is wasted. On a line with uneven production flow — typical in Indian manufacturing — this results in batches being mixed, partly used, and discarded regularly.

The EcoDose mixes at the point of the gun, in real time, at the exact rate of application. There is no pre-mixed batch sitting in a cup or bucket accumulating pot life. The system flushes between applications — only the small volume in the mixing zone is affected — making pot life waste functionally negligible.

Flush Volume and Solvent Consumption

Between colour changes or at shift end, the EcoDose and its associated piping require flushing with solvent to prevent paint from crosslinking in the lines and gun. Dürr designs the EcoDose with minimal internal volume between mixing point and gun — reducing flush solvent consumption compared to manual systems where the entire mixed batch in the bucket plus the spray gun and hose must be cleaned.

In Indian operations where solvent handling and VOC compliance are becoming more closely monitored by state PCBs, minimising flush solvent volume is both a cost and a compliance benefit.

System Economics

The EcoDose investment is justified by the combination of: reduced adhesion failure and rework costs, elimination of pot life waste, reduced per-batch solvent consumption, and the quality assurance value to customers who audit your process. For manufacturers supplying to OEMs or export markets, the cost of a single customer quality complaint — in rework, logistics, and relationship impact — typically exceeds the annual ownership cost of the EcoDose system.

Integration with the Dürr Liquid Coating System

The EcoDose is one component within the broader Dürr liquid coating system portfolio available through OptiFinish in India. It is designed to integrate with:

• Dürr spray guns — including the Dürr airless gun and HVLP gun for different application requirements
• Dürr supply systems for paint delivery and pressure management
• Centralised plant controls for recipe management, ratio logging, and production data capture

For Indian manufacturers looking to establish or upgrade a liquid paint line with precision and audit-trail capability, this integrated approach provides both performance and the documentation that quality-audited customers increasingly require. Production data — actual ratio applied, gun pressure, flow rate, batch ID — can be logged per part, supporting quality management system records and customer traceability requirements.

Installation and Commissioning: What to Expect

OptiFinish manages the complete installation and commissioning of Dürr EcoDose systems in India. A typical commissioning sequence includes:

1. System installation — mounting the dosing unit, connecting paint supply lines, gun connections, and flush solvent supply
2. Calibration — verifying pump output at operating viscosity for each component; calibration is performed using actual production paint at operating temperature
3. Ratio verification — gravimetric check (weighing delivered components) to confirm ratio accuracy before production starts
4. Operator training — system startup and shutdown procedures, flush cycle operation, ratio verification routine, and basic troubleshooting
5. Trial run — supervised production run with quality checks to confirm film properties meet specification

Ongoing service support and spare parts supply are available from OptiFinish's Greater Noida base.

Who Needs the EcoDose in India?

The Dürr EcoDose 2K/3K is well suited to Indian manufacturers in several segments:

• Automotive OEM and Tier 1 suppliers — where paint system specifications are defined by the customer and deviation is not accepted
• Agricultural and construction equipment — requiring durable topcoats on large structures that must perform in demanding field conditions
• Industrial equipment manufacturers — coating machinery, panels, and enclosures with 2K protective systems
• Premium consumer product manufacturers — appliances, fitness equipment, and lifestyle products where surface quality is a commercial differentiator
• Defence and government supply — where product documentation and process traceability are procurement requirements

OptiFinish: Authorised Dürr Partner in India

OptiFinish is the authorised partner for Dürr coating equipment in India. We supply, install, and commission Dürr systems — including the EcoDose range — from our Greater Noida base. Our team provides technical consultation on system selection, integration design, installation, operator training, and ongoing service support throughout the equipment lifecycle.

Contact OptiFinish to discuss your liquid paint application requirements and how the Dürr EcoDose system can improve your process precision and finish consistency.
