What recovery rate does OptiFinish's cyclone dust collector achieve?

OptiFinish cyclone dust collectors achieve 92–96% first-pass powder recovery. A secondary bag filter captures residual fines, making the system fully CPCB compliant.

What airflow range does the cyclone system cover?

OptiFinish cyclone systems are available from 3,000 CMH to 32,000 CMH, configured to match booth size and powder throughput requirements.

Can the cyclone be used with any powder coating booth?

Yes. OptiFinish cyclone and dust collector systems are modular and can be integrated with new powder coating booths or retrofitted to existing installations.

In-house Manufactured — Greater Noida

92–96% Recovery — 3,000 to 32,000 CMH

Recover the powder. Meet the norms.

A modular powder recovery and exhaust filtration system — deployed standalone or integrated within any OptiFinish booth — delivering 92–96% powder reclaim efficiency and CPCB-compliant exhaust across a 3,000–32,000 CMH airflow range.

92–96%

Cyclone recovery rate

32,000

Max CMH airflow

CPCB

Compliant exhaust

Enquire →← Back to Manufactured

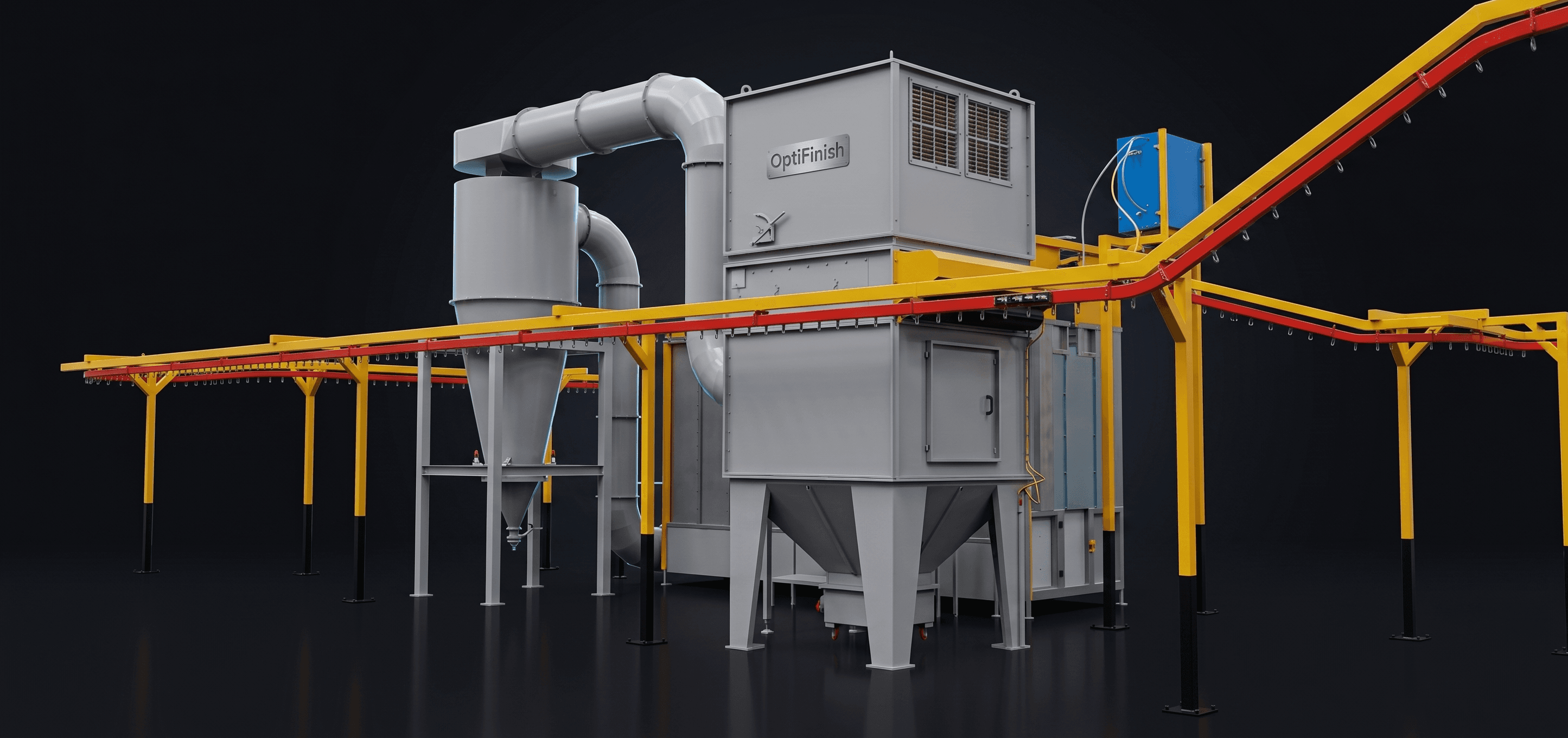

Cyclone & Dust Collector · powder recovery system

Installation Gallery

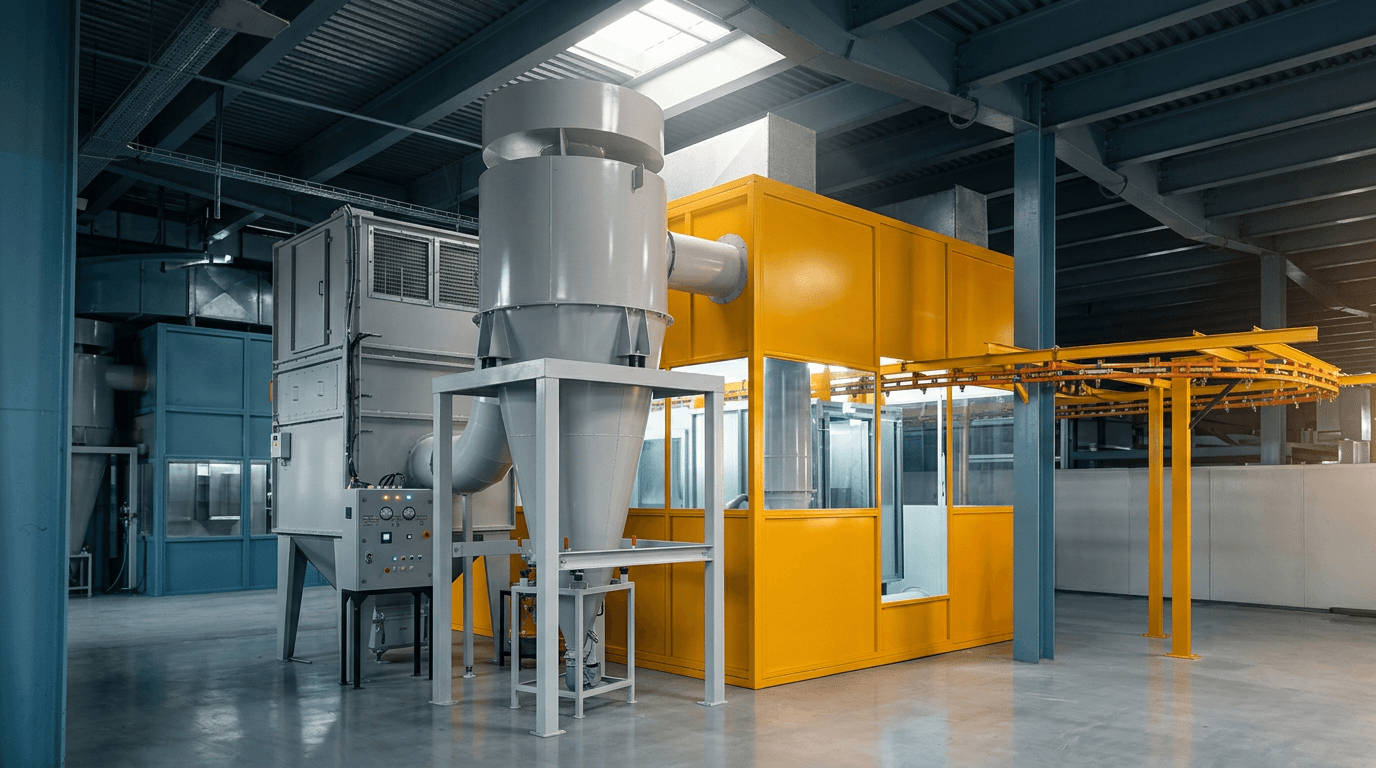

Full Line View

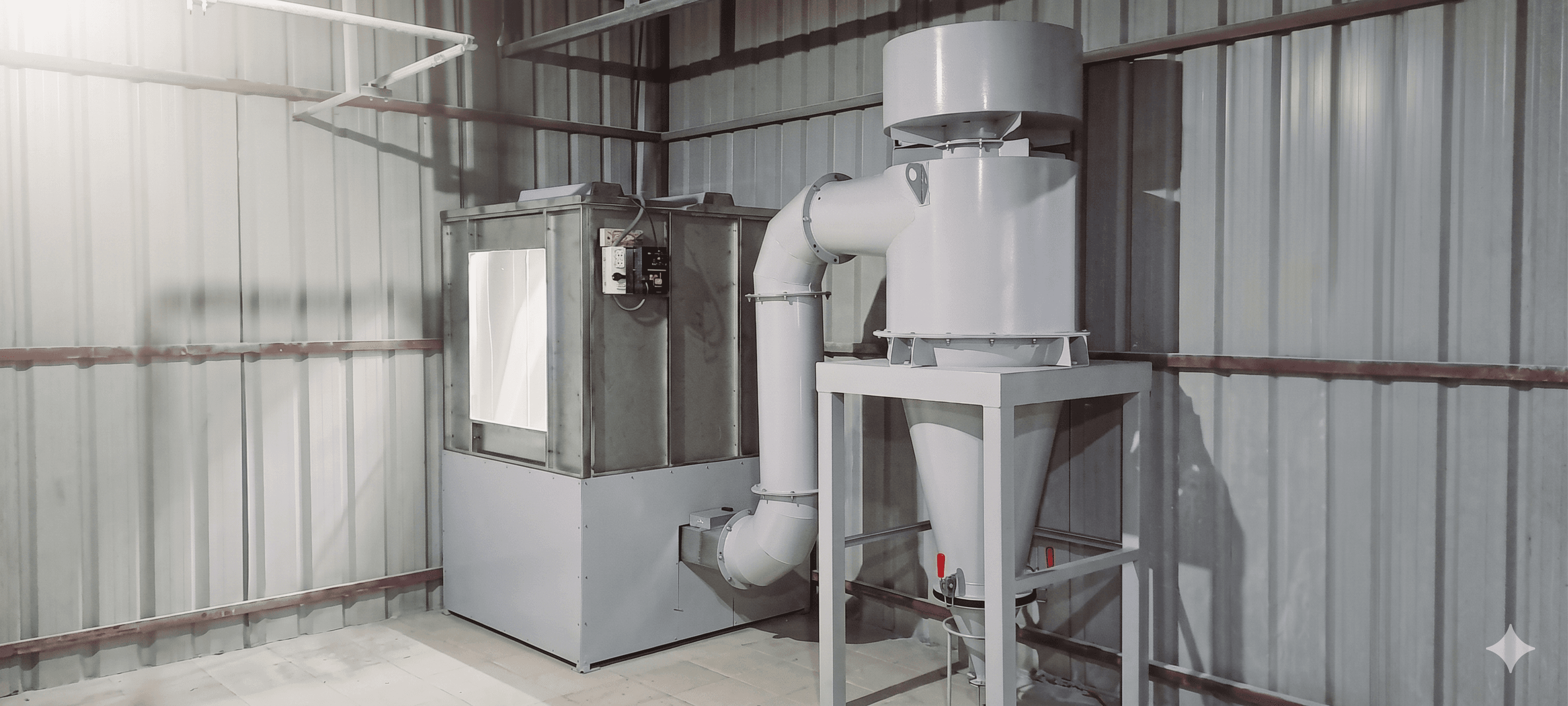

Compact Setup

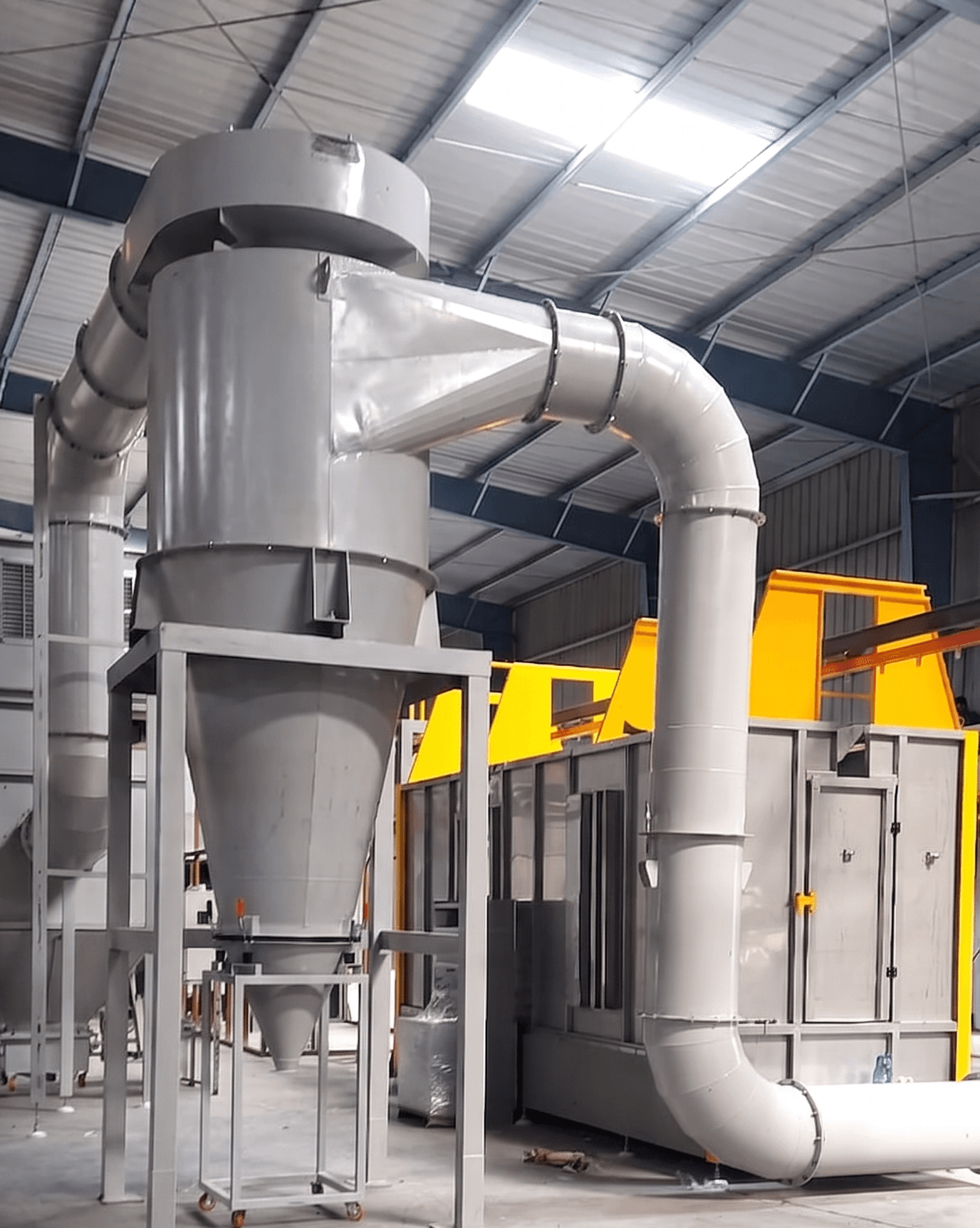

Factory Installation

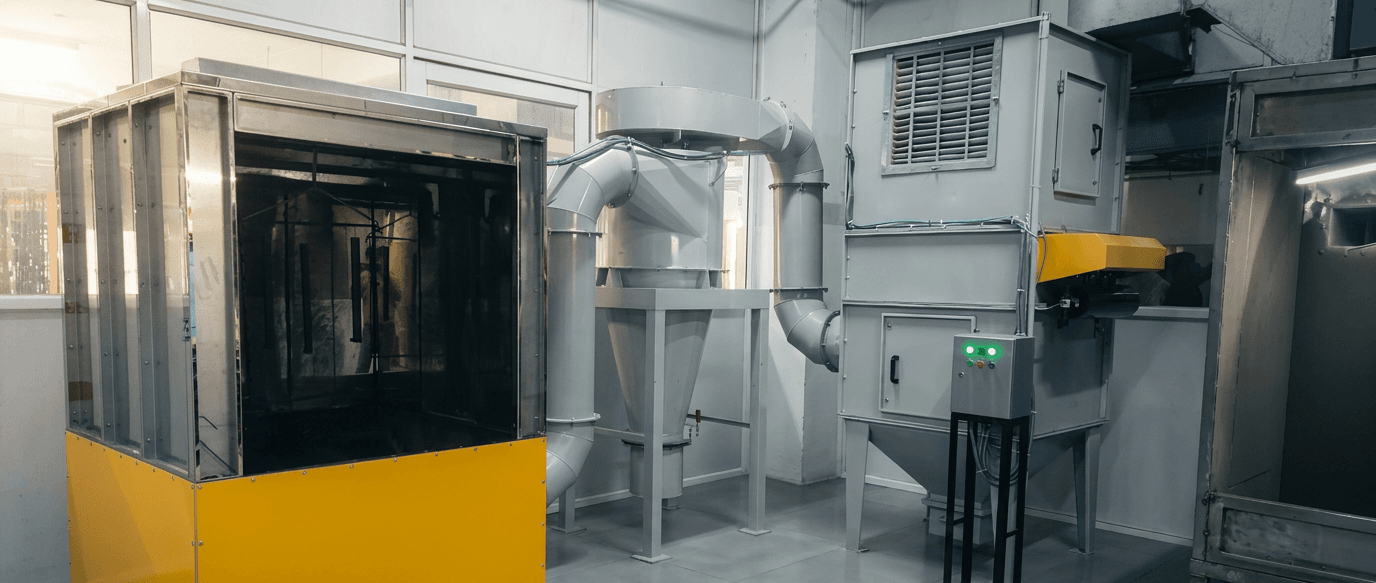

Cyclone & Dust Collector

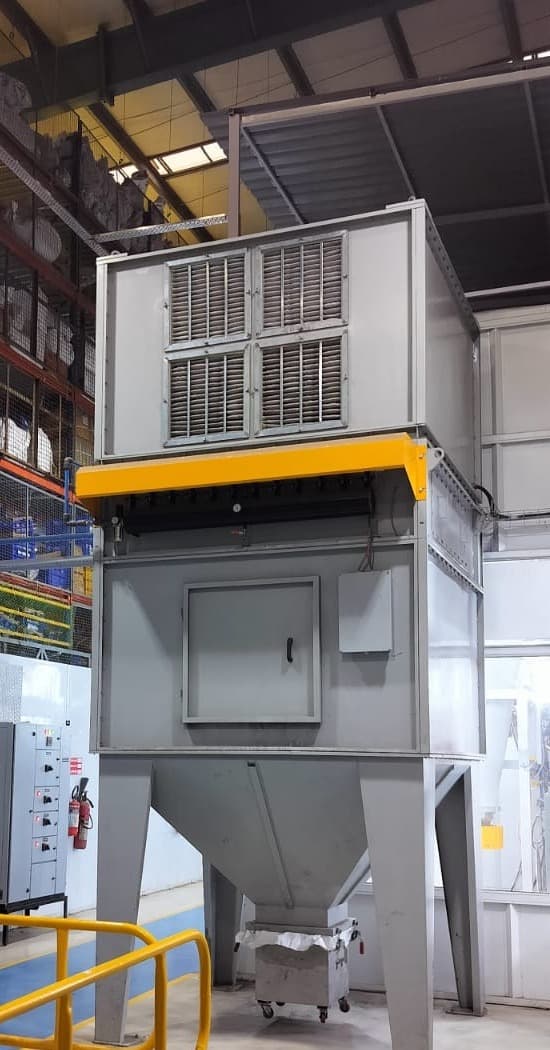

Dust Collector Unit

Why this product

Powder escaping the booth is money and a compliance failure.

Over-sprayed powder that isn't captured by the primary recovery system goes one of two places: back into the working environment or out of the exhaust stack. Both are problems — one is a health hazard and waste, the other is a CPCB violation. The cyclone and bag filter system handles both with one modular unit.

Primary cyclone stage: 92–96% powder recovery by centrifugal force — no moving parts in the powder stream
Recovered powder returns directly to the hopper — continuous, closed-loop recovery without manual intervention
Secondary bag filter polishes exhaust air to CPCB particulate emission compliance
Modular design: bag replacement without production shutdown; accessible panels for maintenance
Pulse-jet cleaning system available for continuous operation without manual filter cleaning
Compatible with all powder types: epoxy, polyester, PU, metallic, textured, and fine-particle grades

Technical data

Full specifications

Airflow range3,000–32,000 CMH (sized to booth dimensions and production load)

Primary stageCyclone separator — 92–96% powder recovery by centrifugal separation

Secondary stageBag filter — CPCB compliant particulate exhaust

ConstructionMS or SS-304

Powder compatibilityEpoxy, polyester, PU, metallic, textured, fine-particle grades

Cleaning systemPulse-jet cleaning available for continuous operation

MaintenanceBag replacement without production shutdown; modular access panels

DeploymentStandalone unit or integrated within OptiFinish booth

Where it's used

Applications & use cases

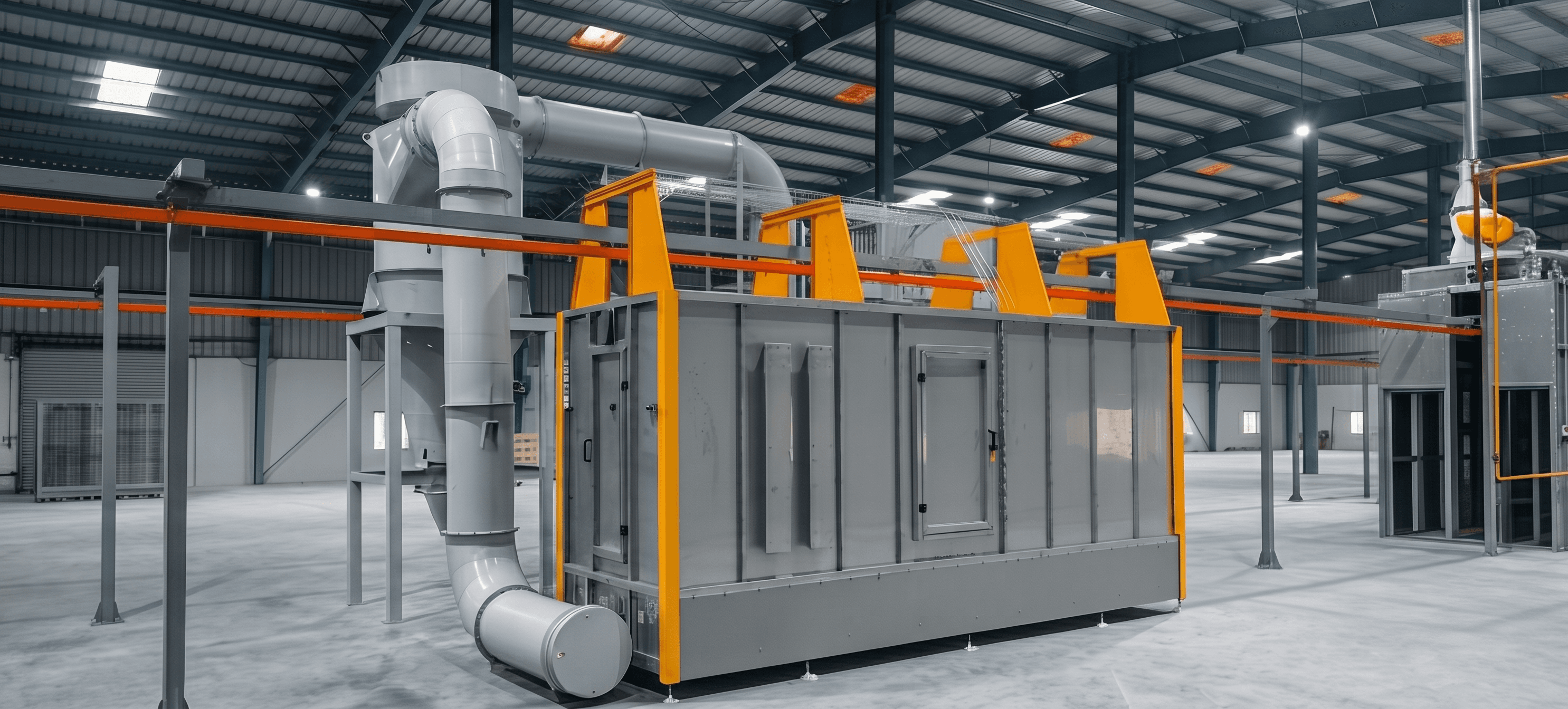

Integration with powder spray booths (MS, SS, PP types)
Standalone powder recovery for existing installations without cyclone
Retrofit for CPCB-compliant exhaust on older systems
High-volume production lines with large airflow requirements
Operations running metallic or fine-particle powder types

Automotive components1 / 6

Works with

Compatibility & integration

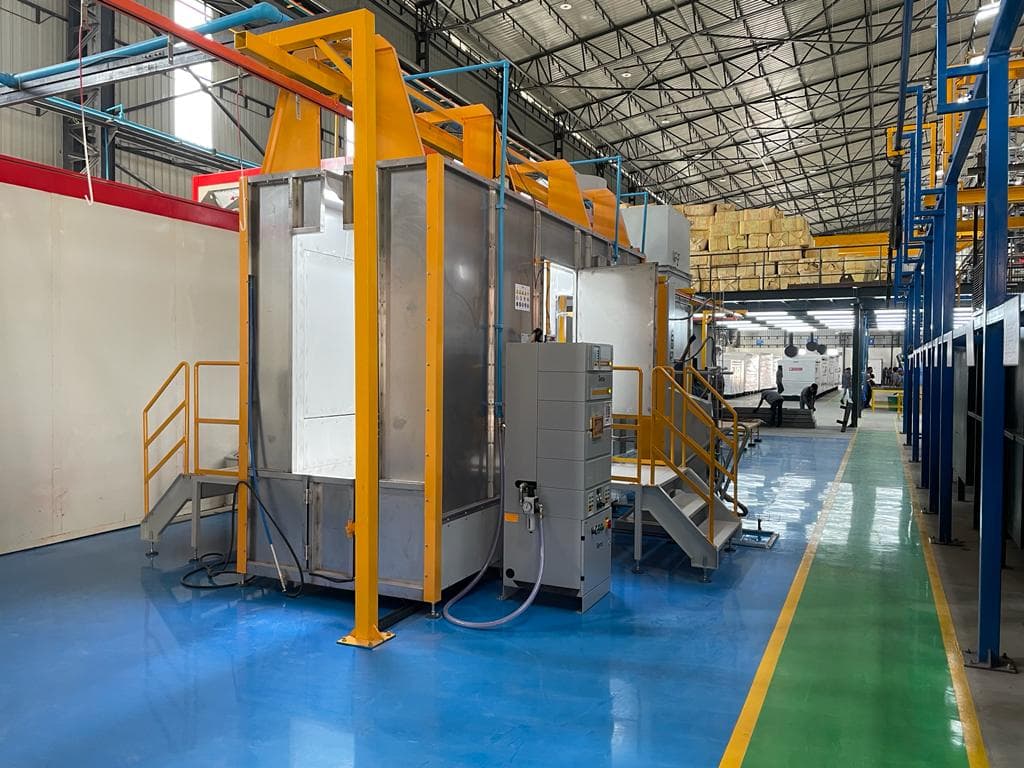

All OptiFinish booth types (MS, SS-304, PP)GEMA OC08 OptiCentre (complementary)OptiFinish PS Vibratory Sieve (downstream)Third-party booth installationsAll powder types and formulations
